CXA3070-0000-000N0HZ465F
CreeLED, Inc.
CreeLED, Inc.

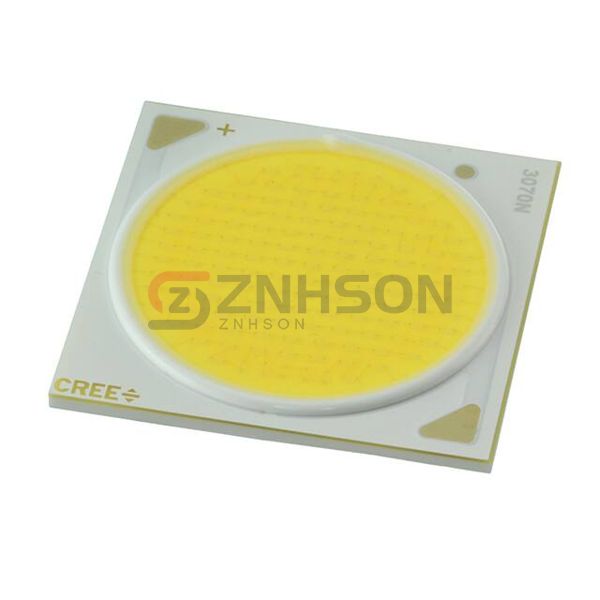

LED COB CXA3070 COOL WHT SQUARE
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CXA3070-0000-000N0HZ465F by CreeLED, Inc. is a high-performance LED lighting solution in the Optoelectronics category, specifically LED Lighting - COBs, Engines, Modules, Strips. With excellent thermal stability and energy efficiency, this product is ideal for applications like UV curing, grow lights, and portable lighting. Trust CreeLED, Inc. to deliver superior LED products tailored to your requirements.
Specifications
- Product Status: Obsolete
- Type: Chip On Board (COB)
- Color: White, Cool
- CCT (K): 6500K 4-Step MacAdam Ellipse
- Wavelength: -
- Configuration: Square
- Luminous Flux @ Current/Temperature: 8223lm (7945lm ~ 8500lm)
- Current - Test: 1.925A
- Temperature - Test: 85°C
- Voltage - Forward (Vf) (Typ): 38.5V
- Lumens/Watt @ Current - Test: 111 lm/W
- Current - Max: 2.8A
- CRI (Color Rendering Index): 80
- Viewing Angle: 115°
- Features: -
- Size / Dimension: 27.35mm L x 27.35mm W
- Height: 1.70mm
- Light Emitting Surface (LES): 23.00mm Dia
- Lens Type: Flat
