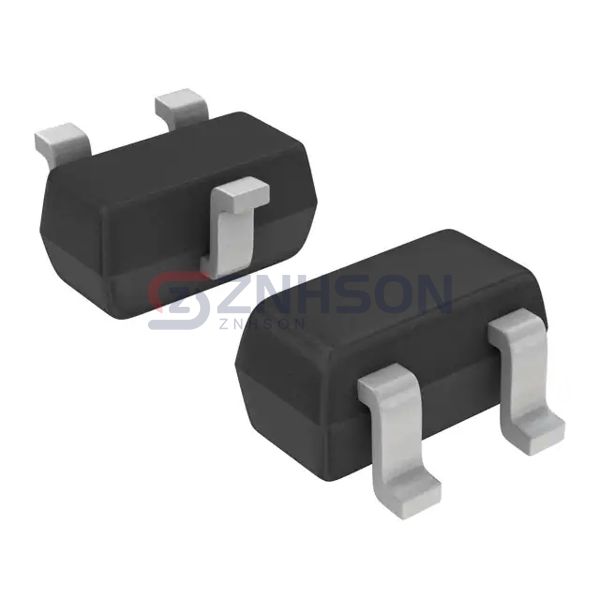

DAN222G
onsemi
onsemi
DIODE ARRAY GP 80V 100MA SC75
$0.18
Available to order
Reference Price (USD)
3,000+
$0.02614
6,000+
$0.02366
15,000+
$0.02069
30,000+
$0.01871
75,000+
$0.01673
150,000+
$0.01475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DAN222G from onsemi sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. onsemi's rigorous quality control ensures the DAN222G maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 70 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
Related Products
Rohm Semiconductor
RB531XNTR
Vishay General Semiconductor - Diodes Division
MBR10H100CT-E3/45
SMC Diode Solutions
MBR2090CT
SMC Diode Solutions
12CWQ03FN
SMC Diode Solutions
MBRF10150CTR
Vishay General Semiconductor - Diodes Division
VS-60CTQ150HN3
Diodes Incorporated
SDM10M45SD-7-F
Vishay General Semiconductor - Diodes Division
VS-HFA16TA60CS-M3
Panjit International Inc.
MBR3060CT_T0_00001

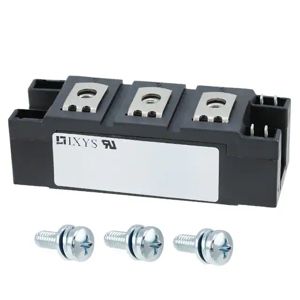

IXYS
