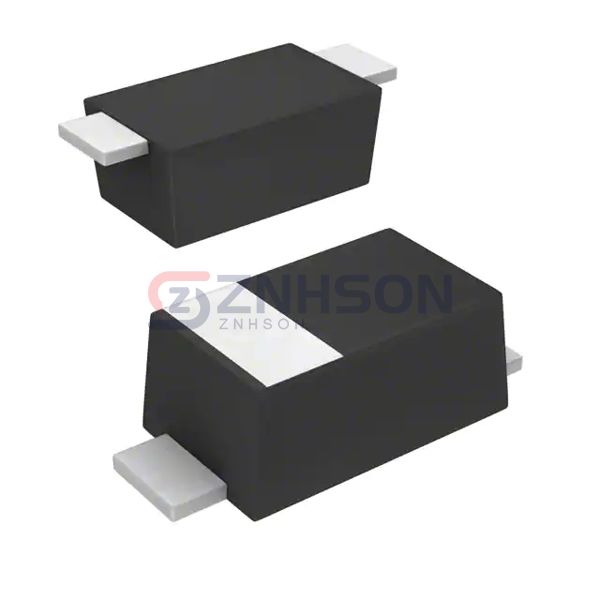

DB2232000L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 30V 1.5A MINI2
$0.00
Available to order
Reference Price (USD)
3,000+
$0.10782
6,000+
$0.10183
15,000+
$0.09285
30,000+
$0.08686
75,000+
$0.08386
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB2232000L from Panasonic Electronic Components is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Panasonic Electronic Components's dedication to quality means the DB2232000L meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 460 mV @ 1.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 16 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 30 V
- Capacitance @ Vr, F: 48pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: Mini2-F4-B
- Operating Temperature - Junction: 125°C (Max)
