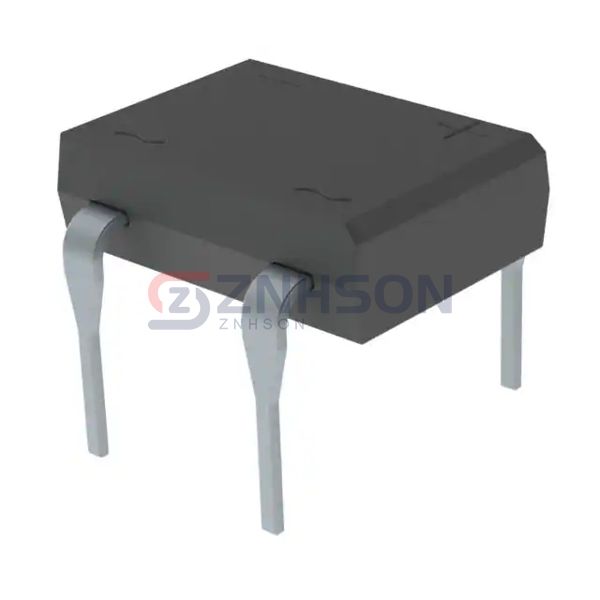

DBL156GH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
BRIDGE RECT 1PHASE 800V 1.5A DBL
$0.29
Available to order
Reference Price (USD)
1+
$0.28740
500+
$0.284526
1000+
$0.281652
1500+
$0.278778
2000+
$0.275904
2500+
$0.27303
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DBL156GH from Taiwan Semiconductor Corporation is a high-performance bridge rectifier diode designed for efficient AC to DC conversion. As part of the Discrete Semiconductor Products category, this diode ensures reliable performance in various power supply applications. Bridge rectifiers are essential for converting alternating current (AC) to direct current (DC), making them ideal for power supplies, motor drives, and welding equipment. With robust construction and low forward voltage drop, the DBL156GH delivers exceptional efficiency and thermal stability. Whether you're designing industrial machinery or consumer electronics, this diode offers the durability and precision you need. Trust Taiwan Semiconductor Corporation for top-quality discrete semiconductors that meet global standards.
Specifications
- Product Status: Active
- Diode Type: Single Phase
- Technology: Standard
- Voltage - Peak Reverse (Max): 800 V
- Current - Average Rectified (Io): 1.5 A
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 1.5 A
- Current - Reverse Leakage @ Vr: 2 µA @ 800 V
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: DBL
