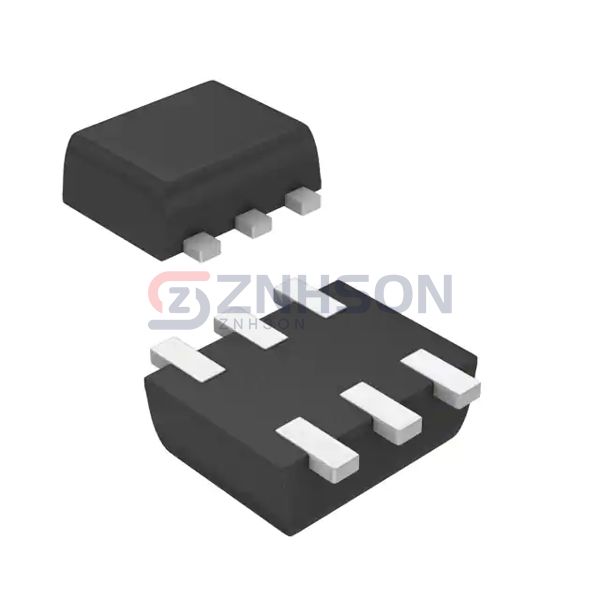

DCX124EH-7
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN/PNP SOT563
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing Diodes Incorporated's DCX124EH-7, a premium pre-biased BJT array that combines innovation with practicality. This transistor array is optimized for low-voltage applications, offering high gain and minimal distortion. Its compact footprint and integrated bias network make it perfect for wearable devices, smart home systems, and medical instruments. Diodes Incorporated's dedication to excellence ensures that the DCX124EH-7 meets the most demanding specifications. With superior ESD protection and long-term stability, this product is a must-have for modern electronic designs.
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 22kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 56 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
