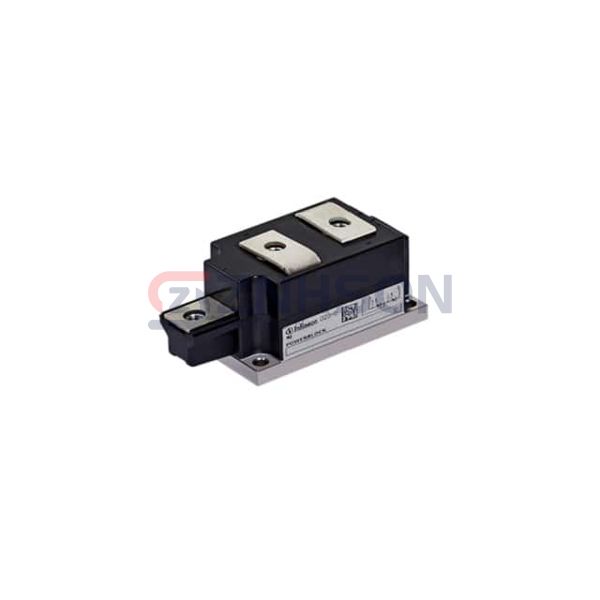

DD540N22KTIMHPSA1
Infineon Technologies
Infineon Technologies
THYR / DIODE MODULE DK
$382.60
Available to order
Reference Price (USD)
1+
$382.60000
500+
$378.774
1000+
$374.948
1500+
$371.122
2000+
$367.296
2500+
$363.47
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DD540N22KTIMHPSA1 rectifier array from Infineon Technologies redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Infineon Technologies's precision manufacturing ensures each DD540N22KTIMHPSA1 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 2200 V
- Current - Average Rectified (Io) (per Diode): 540A
- Voltage - Forward (Vf) (Max) @ If: 1.48 V @ 1.7 kA
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 40 mA @ 2200 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: BG-PB60AT-1
