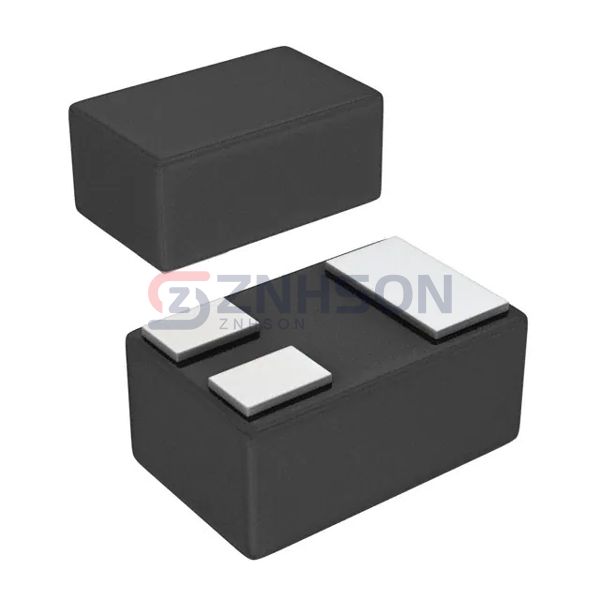

DDTC114ELP-7
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 250MW 3DFN
$0.45
Available to order
Reference Price (USD)
3,000+
$0.13528
6,000+
$0.12793
15,000+
$0.12058
30,000+
$0.11200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated's DDTC114ELP-7 redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 10mA, 70mA
- Current - Collector Cutoff (Max): 1µA
- Frequency - Transition: 250 MHz
- Power - Max: 250 mW
- Mounting Type: Surface Mount
- Package / Case: 3-UFDFN
- Supplier Device Package: X1-DFN1006-3
Related Products
Toshiba Semiconductor and Storage

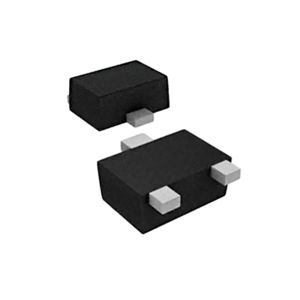

RN2107MFV,L3F(CT
Toshiba Semiconductor and Storage

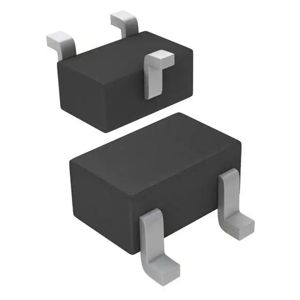

RN2309,LXHF
Toshiba Semiconductor and Storage
RN2416,LF
Rohm Semiconductor

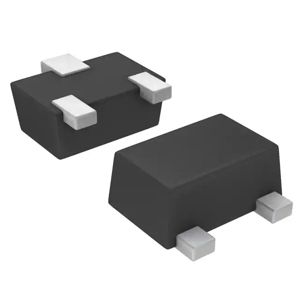

DTD543ZMT2L
onsemi
MMUN2133LT1
Diodes Incorporated
DDTC114EUA-7-F
onsemi

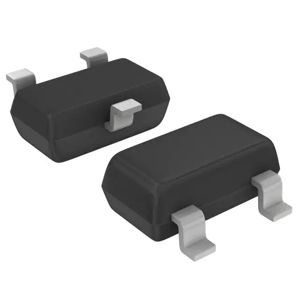

SMUN2213T1G
Rohm Semiconductor

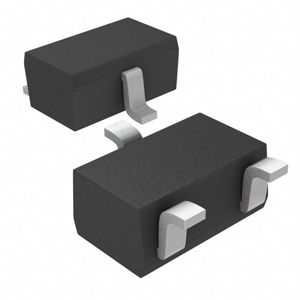

DTA114WUAT106
Rohm Semiconductor

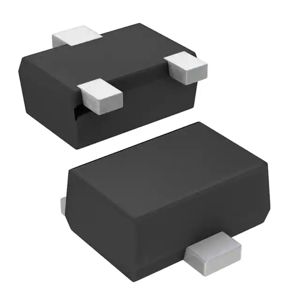

DTA024EEBTL
