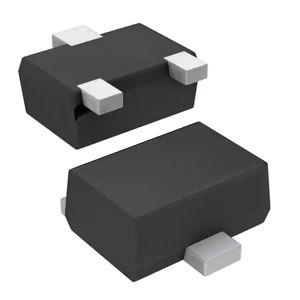

DDTC143ZE-7-F
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 150MW SOT523
$0.31
Available to order
Reference Price (USD)
3,000+
$0.05072
6,000+
$0.04410
15,000+
$0.03749
30,000+
$0.03528
75,000+
$0.03308
150,000+
$0.02940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DDTC143ZE-7-F by Diodes Incorporated sets new benchmarks for single BJT transistors. Featuring moisture-resistant packaging (MSL-3 rated) and 8ns switching speed, it's the preferred choice for: Drone motor controllers Solar microinverters POS terminal printers Backed by Diodes Incorporated's global technical support and 5-year warranty for peace of mind.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250 MHz
- Power - Max: 150 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-523
- Supplier Device Package: SOT-523
