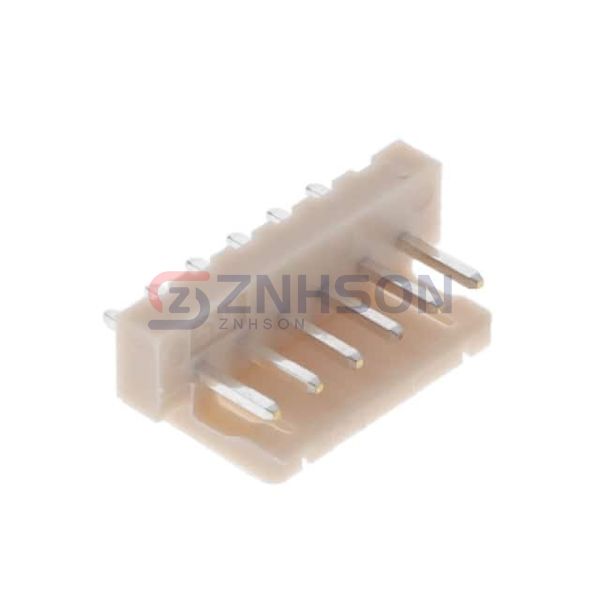

DF1-6P-2.5DSA(05)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 6POS 2.5MM
$0.50
Available to order
Reference Price (USD)
1+
$0.44000
10+
$0.40800
100+
$0.31280
500+
$0.27200
1,000+
$0.22440
5,000+
$0.19720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the DF1-6P-2.5DSA(05) rectangular connector header by Hirose Electric Co Ltd. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the DF1-6P-2.5DSA(05) ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Hirose Electric Co Ltd for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.394" (10.00mm)
- Insulation Height: 0.295" (7.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Brown
- Current Rating (Amps): 3A
- Voltage Rating: 250V
