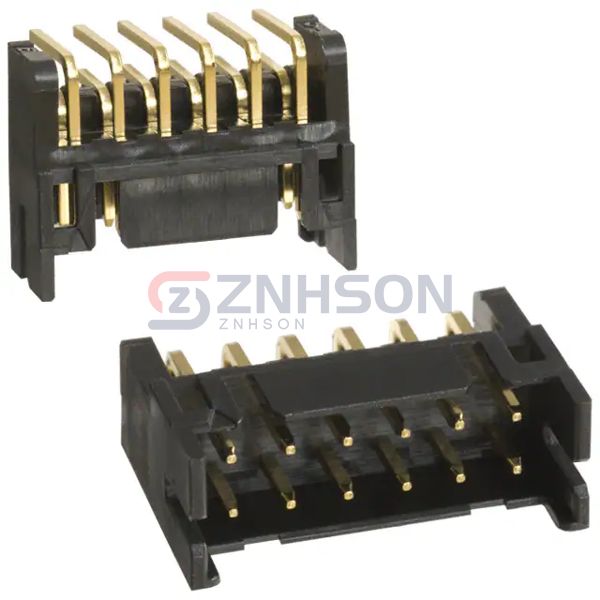

DF11-12DP-2DS(52)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 12POS 2MM
$1.90
Available to order
Reference Price (USD)
1+
$1.59000
34+
$1.35706
102+
$1.23902
510+
$1.03251
1,020+
$0.88500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF11-12DP-2DS(52) by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250V
Related Products
Molex
0026604070
Samtec Inc.
TMM-124-02-G-S
Molex
1053141206
Preci-Dip
800-80-060-10-002101
Samtec Inc.
TSM-114-04-S-DV
Preci-Dip
830-10-045-30-001101
Samtec Inc.
FTMH-115-02-F-DV-ES-A
Samtec Inc.
HTSW-110-09-F-S
Preci-Dip

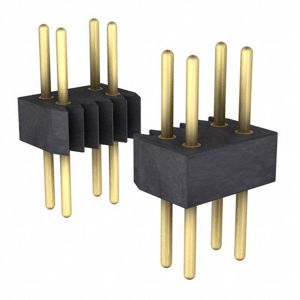

852-10-064-10-002101
