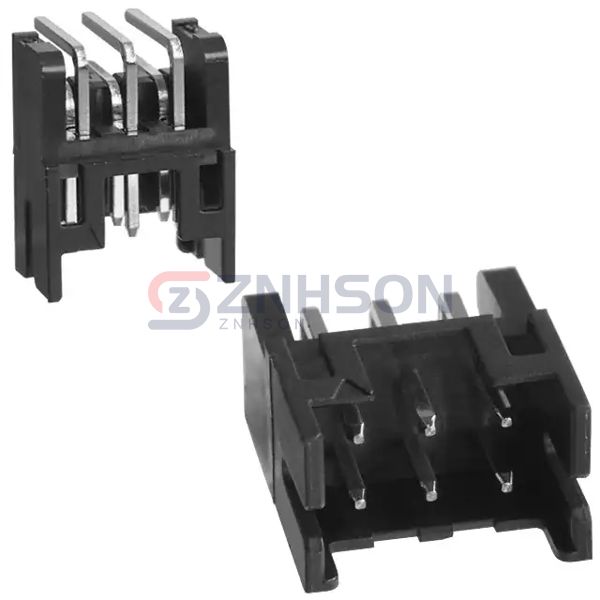

DF11-6DP-2DS(24)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 6POS 2MM
$0.57
Available to order
Reference Price (USD)
1+
$0.51000
61+
$0.38410
122+
$0.36803
549+
$0.32004
1,037+
$0.26403
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the DF11-6DP-2DS(24) rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the DF11-6DP-2DS(24) is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250V
