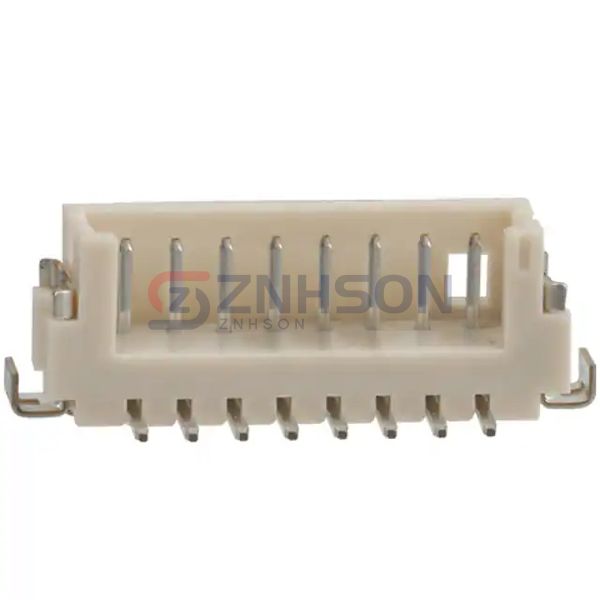

DF13B-8P-1.25V(21)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 8POS 1.25MM
$0.75
Available to order
Reference Price (USD)
1+
$0.75000
500+
$0.7425
1000+
$0.735
1500+
$0.7275
2000+
$0.72
2500+
$0.7125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF13B-8P-1.25V(21) male pin header by Hirose Electric Co Ltd provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.189" (4.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A
- Voltage Rating: 150V
Related Products
Samtec Inc.
TSW-108-07-G-T
TE Connectivity AMP Connectors
4-794630-8
Preci-Dip
800-10-021-10-002101
Samtec Inc.
TFM-130-12-L-D-A
Samtec Inc.
TSM-110-02-T-DV-A
Samtec Inc.
FTSH-120-05-L-DV-A-P-TR
Samtec Inc.
TMM-118-02-L-S
Samtec Inc.

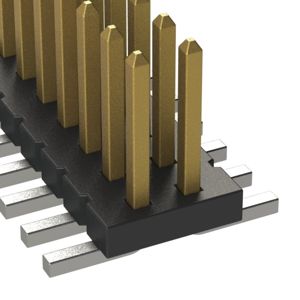

FTS-115-04-SM-DV-P-TR
Molex

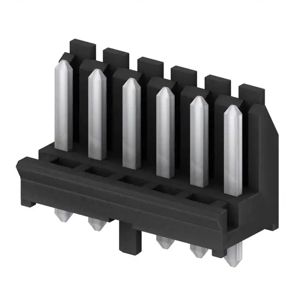

0366420001
