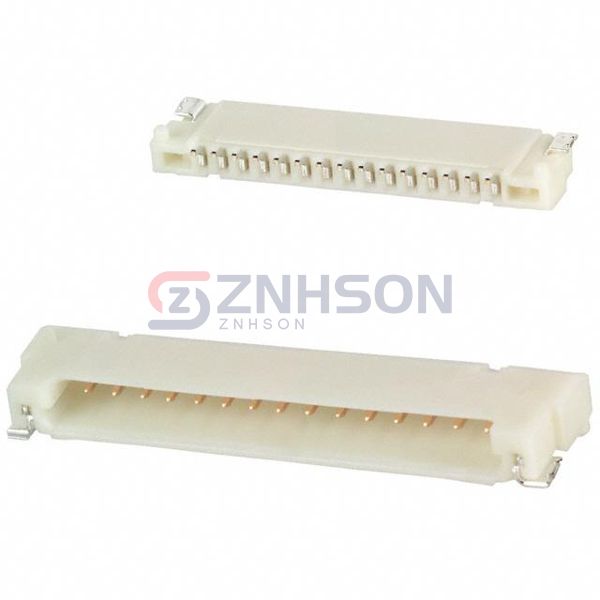

DF14-15P-1.25H(54)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD R/A 15POS 1.25MM
$1.78
Available to order
Reference Price (USD)
1+
$1.70000
10+
$1.54400
100+
$1.32300
500+
$1.10250
1,000+
$0.94500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF14-15P-1.25H(54) male pin header by Hirose Electric Co Ltd provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.086" (2.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Tin-Copper
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A
- Voltage Rating: 150VAC
