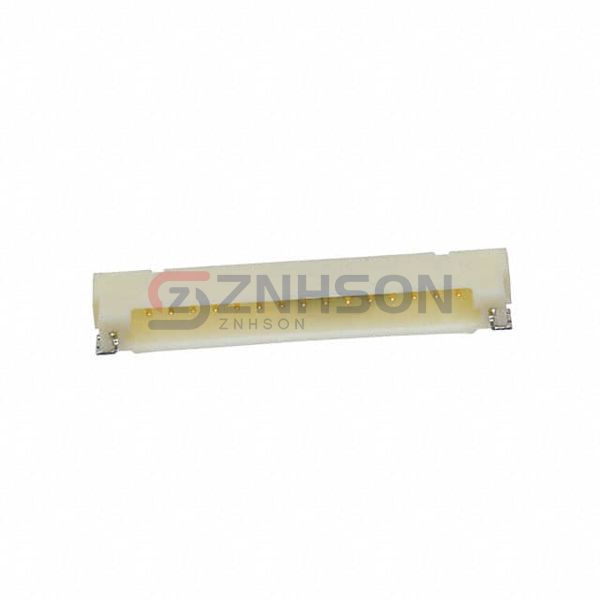

DF14A-15P-1.25H(54)

Specifications

• Product Status: Obsolete
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.049" (1.25mm)
• Number of Positions: 15
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.086" (2.20mm)
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.098" (2.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 3.94µin (0.100µm)
• Contact Finish - Post: Tin-Copper
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: Solder Retention
• Operating Temperature: -35°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Beige
• Current Rating (Amps): 1A
• Voltage Rating: 150VAC
