DF1B-4P-2.5DS(01)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 4POS 2.5MM
$0.67
Available to order
Reference Price (USD)
1+
$0.57000
10+
$0.53400
100+
$0.40940
500+
$0.35600
1,000+
$0.29370
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the DF1B-4P-2.5DS(01) rectangular connector header from Hirose Electric Co Ltd for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Hirose Electric Co Ltd is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.224" (5.69mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Samtec Inc.
TSM-112-02-T-SV-A-P-TR
Amphenol ICC (FCI)
68015-411HLF
Samtec Inc.
TSW-107-14-F-D
Preci-Dip
830-80-014-30-001101
Oupiin
2011H-1X02MTSH030B

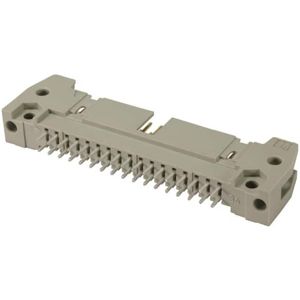

HARTING
09185407924

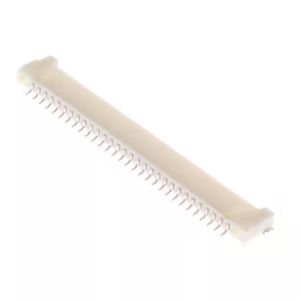

Hirose Electric Co Ltd
DF14-30P-1.25H(52)

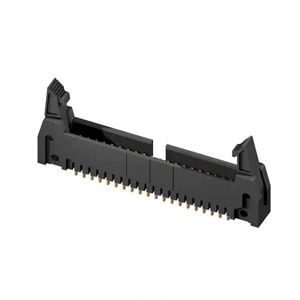

Cvilux USA
