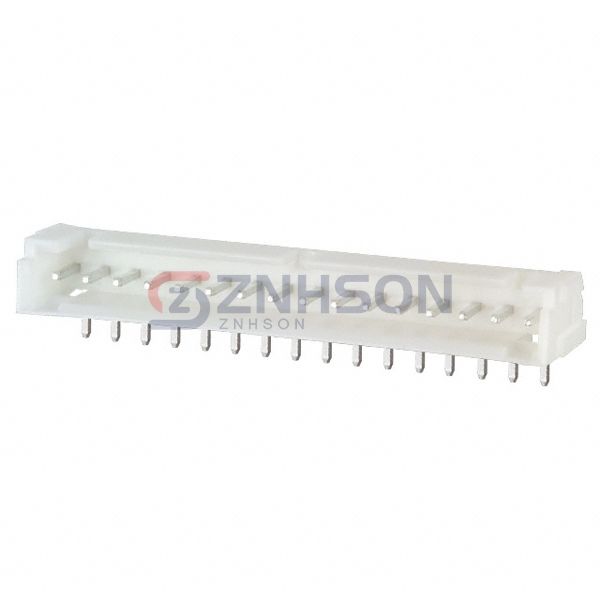

DF1BZ-16P-2.5DS
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 16POS 2.5MM
$0.91
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.68900
100+
$0.59400
500+
$0.48600
1,000+
$0.43200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF1BZ-16P-2.5DS by Hirose Electric Co Ltd is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Hirose Electric Co Ltd delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.224" (5.69mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: 150V
