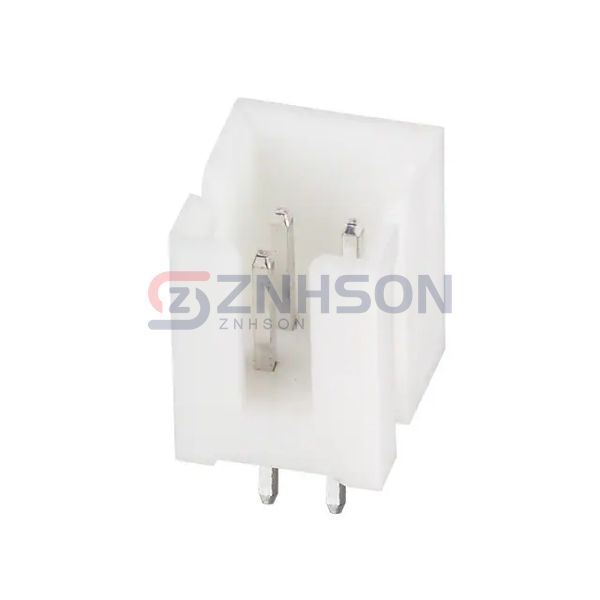

DF1BZ-4DP-2.5DSA

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 4
• Number of Rows: 2
• Row Spacing - Mating: 0.098" (2.50mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.177" (4.50mm)
• Contact Length - Post: 0.142" (3.60mm)
• Overall Contact Length: 0.417" (10.60mm)
• Insulation Height: 0.374" (9.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: Keying Slot
• Operating Temperature: -35°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: White
• Current Rating (Amps): -
• Voltage Rating: 250V
