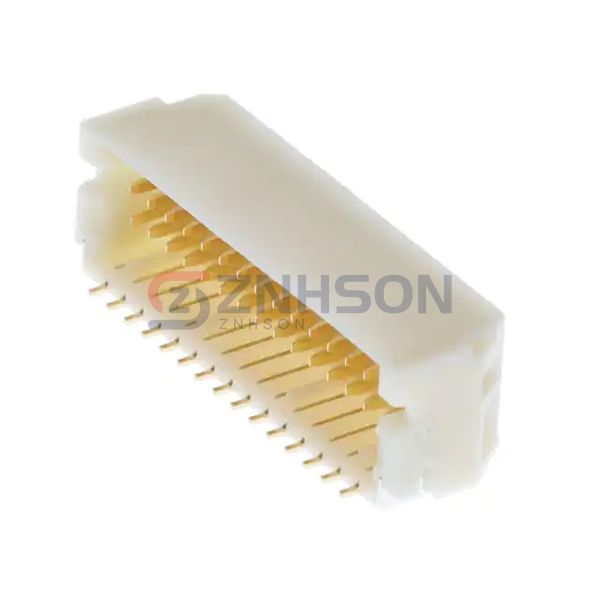

DF20F-30DP-1H(52)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD R/A 30POS 1MM
$2.18
Available to order
Reference Price (USD)
1+
$2.18000
500+
$2.1582
1000+
$2.1364
1500+
$2.1146
2000+
$2.0928
2500+
$2.071
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DF20F-30DP-1H(52) rectangular connector header from Hirose Electric Co Ltd, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the DF20F-30DP-1H(52) adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Hirose Electric Co Ltd guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 100VAC/DC
