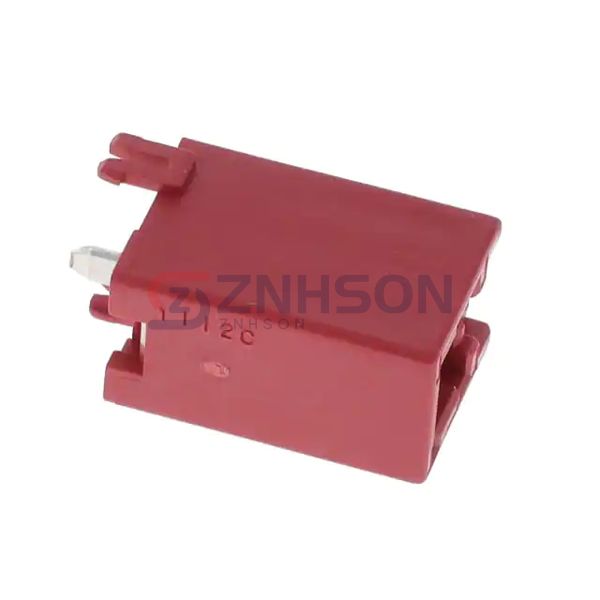

DF22L-1P-7.92DSA(57)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: -
• Number of Positions: 1
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: 0.354" (9.00mm)
• Contact Length - Post: 0.146" (3.70mm)
• Overall Contact Length: -
• Insulation Height: 0.713" (18.10mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: Gold
• Contact Material: Copper Alloy
• Insulation Material: Polyamide (PA), Nylon
• Features: Board Guide, Board Lock
• Operating Temperature: -55°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Red
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 1000VAC/DC
