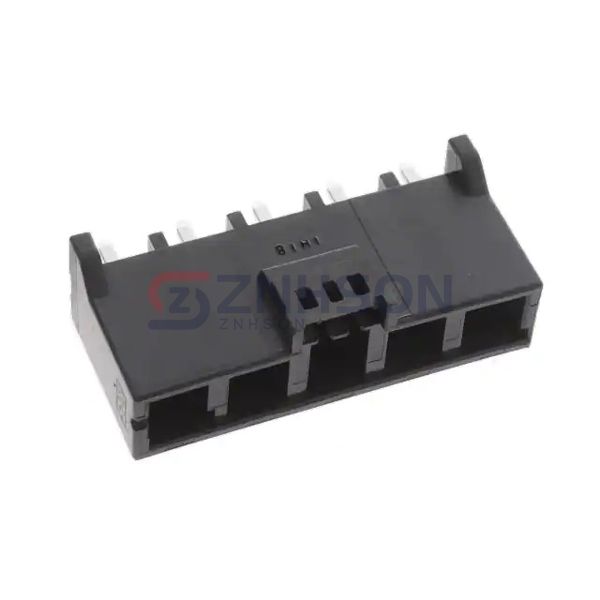

DF22R-5P-7.92DSA(53)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONNECTOR
$2.70
Available to order
Reference Price (USD)
1+
$2.70000
500+
$2.673
1000+
$2.646
1500+
$2.619
2000+
$2.592
2500+
$2.565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF22R-5P-7.92DSA(53) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DF22R-5P-7.92DSA(53) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.312" (7.92mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.354" (9.00mm)
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: -
- Insulation Height: 0.713" (18.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Board Lock
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 1000VAC/DC
