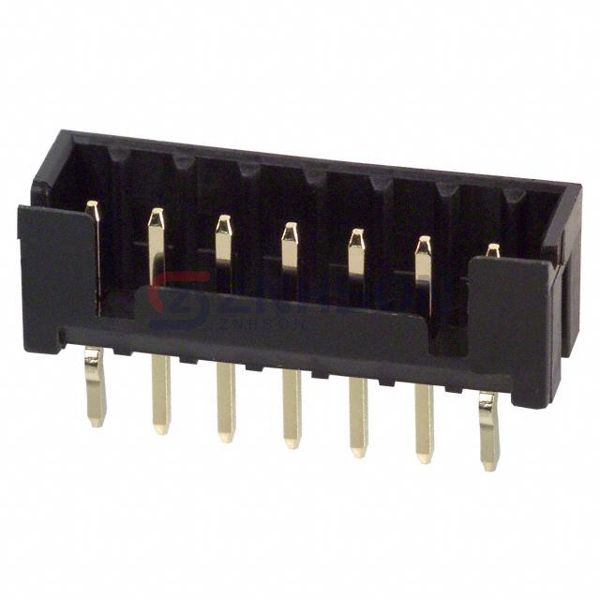

DF3-7P-2DSA(01)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 7POS 2MM
$0.85
Available to order
Reference Price (USD)
1+
$0.73000
10+
$0.63800
100+
$0.55000
500+
$0.45000
1,000+
$0.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the DF3-7P-2DSA(01) rectangular connector header from Hirose Electric Co Ltd. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the DF3-7P-2DSA(01) meets the highest industry standards. Hirose Electric Co Ltd provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.122" (3.10mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.299" (7.60mm)
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
