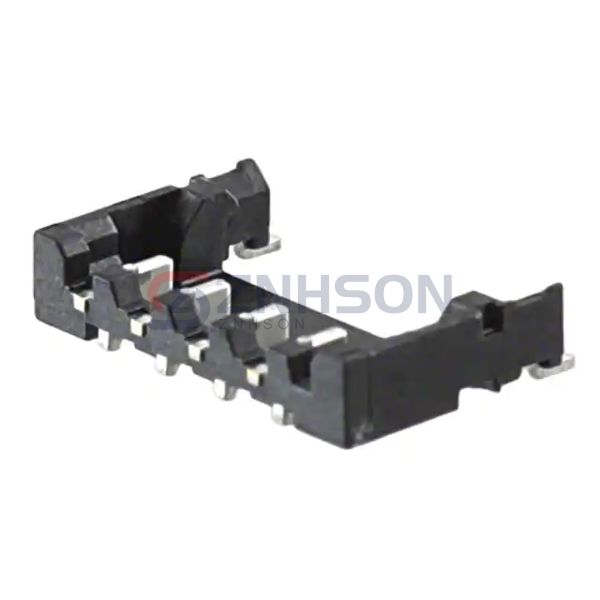

DF57H-4P-1.2V(21)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD 4POS 1.2MM
$0.93
Available to order
Reference Price (USD)
5,000+
$0.43400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF57H-4P-1.2V(21) by Hirose Electric Co Ltd is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DF57H-4P-1.2V(21) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Hirose Electric Co Ltd ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.047" (1.20mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Swing Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.055" (1.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
