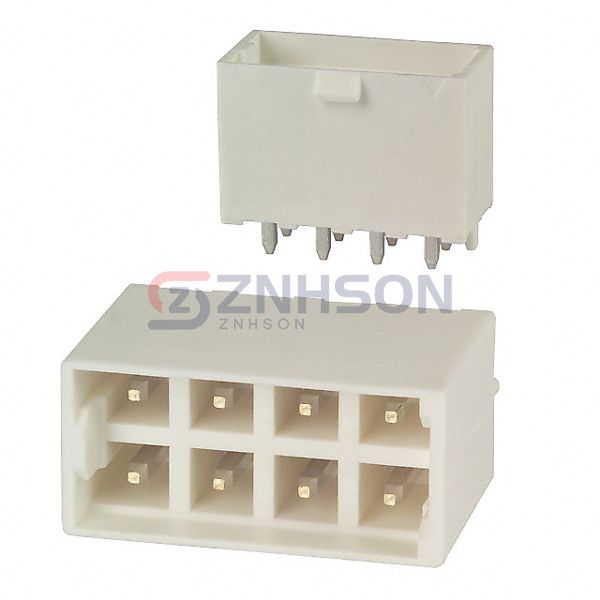

DF5A-8DP-5DSA(35)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.197" (5.00mm)
• Number of Positions: 8
• Number of Rows: 2
• Row Spacing - Mating: 0.197" (5.00mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: -
• Contact Length - Post: 0.138" (3.50mm)
• Overall Contact Length: -
• Insulation Height: 0.591" (15.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 39.4µin (1.00µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: Board Guide
• Operating Temperature: -35°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Beige
• Current Rating (Amps): -
• Voltage Rating: -
