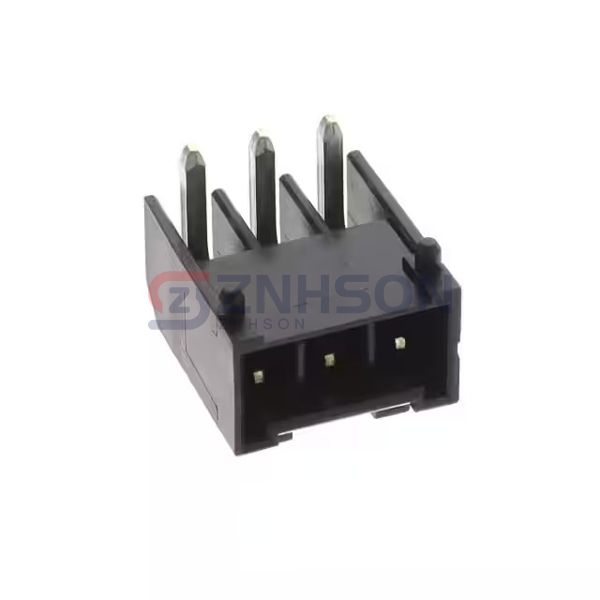

DF63M-3P-3.96DS
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 3POS 3.96MM
$0.57
Available to order
Reference Price (USD)
200+
$0.34270
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the DF63M-3P-3.96DS rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the DF63M-3P-3.96DS is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC/DC
