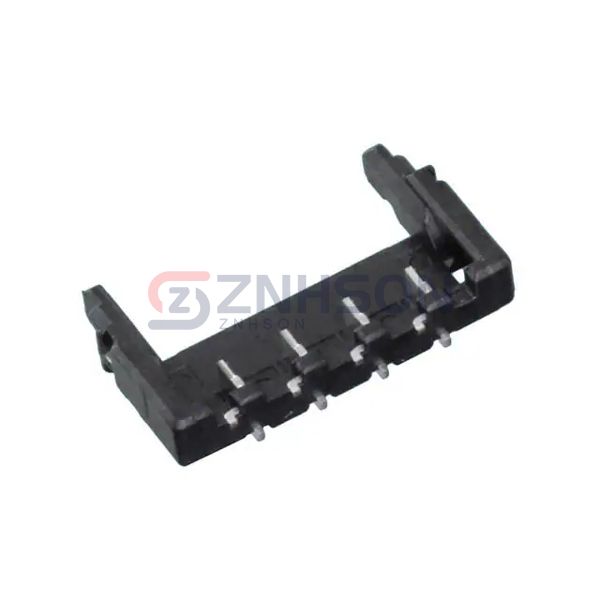

DF65-4P-1.7V(21)

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Blade
• Pitch - Mating: 0.067" (1.70mm)
• Number of Positions: 4
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 3 Wall
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Latch Lock
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.065" (1.65mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: Solder Retention
• Operating Temperature: -40°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
