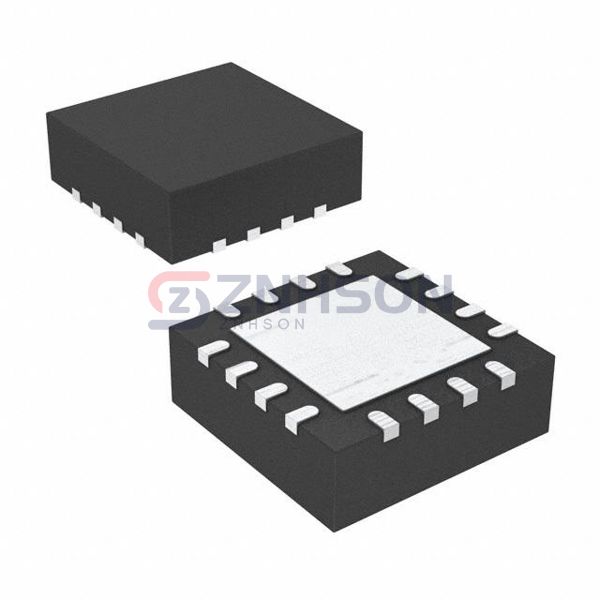

DG1408EEN-T1-GE4
Vishay Siliconix
Vishay Siliconix
IC MUX 8:1 8CH 16QFN
$8.27
Available to order
Reference Price (USD)
2,500+
$3.70500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DG1408EEN-T1-GE4 - Vishay Siliconix's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The DG1408EEN-T1-GE4 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 4.7Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 24V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 150ns, 120ns
- -3db Bandwidth: 46MHz
- Charge Injection: 100pC
- Channel Capacitance (CS(off), CD(off)): 14pF, 89pF
- Current - Leakage (IS(off)) (Max): 200pA
- Crosstalk: -64dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad
- Supplier Device Package: 16-QFN (4x4)
