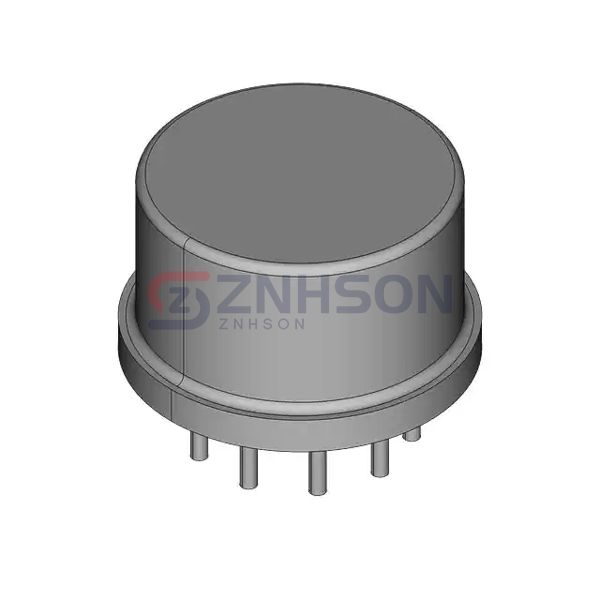

DG180AA/883B
Harris Corporation
Harris Corporation
DUAL SPST HIGH-SPEED DRIVER
$14.56
Available to order
Reference Price (USD)
1+
$14.56000
500+
$14.4144
1000+
$14.2688
1500+
$14.1232
2000+
$13.9776
2500+
$13.832
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG180AA/883B represents Harris Corporation's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): ±15V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 300ns, 250ns
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 9pF, 6pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -25°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-100-10 Metal Can
- Supplier Device Package: TO-100-10
