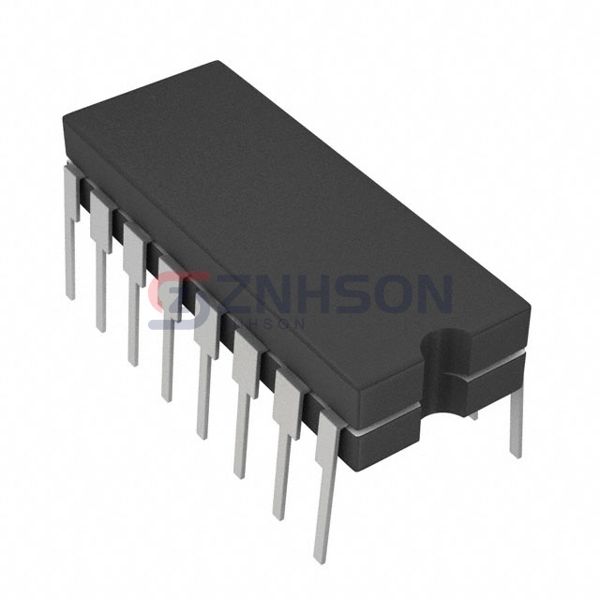

DG200AAK/883B
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH SPST DUAL 16CDIP
$40.08
Available to order
Reference Price (USD)
1+
$40.08000
500+
$39.6792
1000+
$39.2784
1500+
$38.8776
2000+
$38.4768
2500+
$38.076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG200AAK/883B represents Analog Devices Inc./Maxim Integrated's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 70Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 1µs, 500ns
- -3db Bandwidth: -
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 9pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 16-CDIP (0.300", 7.62mm)
- Supplier Device Package: 16-CDIP
