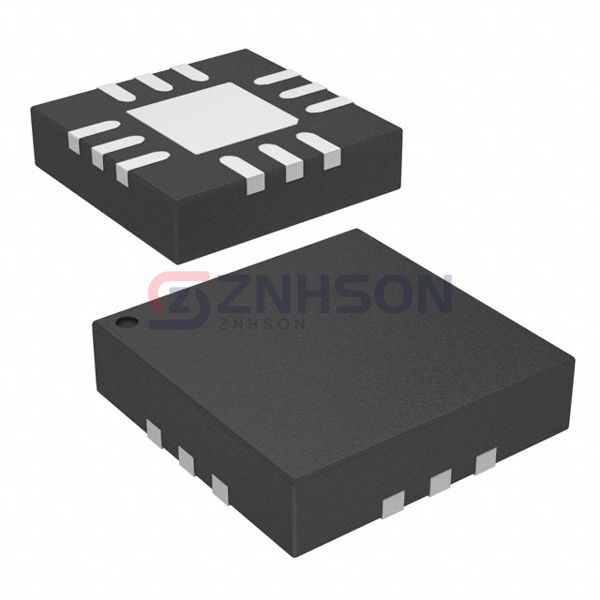

DG2034EDN-T1-GE4
Vishay Siliconix
Vishay Siliconix
IC SWITCH SP4T SINGLE 12QFN
$1.58
Available to order
Reference Price (USD)
2,500+
$0.61600
5,000+
$0.58520
12,500+
$0.56320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DG2034EDN-T1-GE4 - Vishay Siliconix's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The DG2034EDN-T1-GE4 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 1
- On-State Resistance (Max): 2.5Ohm
- Channel-to-Channel Matching (ΔRon): 20mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 25ns, 20ns
- -3db Bandwidth: 166MHz
- Charge Injection: -2.6pC
- Channel Capacitance (CS(off), CD(off)): 7pF, -
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -71dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-VFQFN Exposed Pad
- Supplier Device Package: 12-QFN (3x3)
Related Products
Analog Devices Inc.
ADG506ATQ/883B
Analog Devices Inc./Maxim Integrated
MAX4618EUE+
Nexperia USA Inc.
74LVC1G66GV,125
Analog Devices Inc./Maxim Integrated
MAX4515ESA+
Texas Instruments
TMUX1121DGKR
Analog Devices Inc./Maxim Integrated
DG409CY+
Analog Devices Inc.
ADG508FBNZ
Analog Devices Inc.
ADG708BRUZ-REEL7
Analog Devices Inc./Maxim Integrated

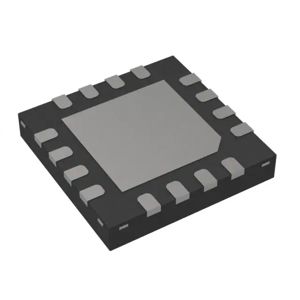

MAX4784ETE+
