DG2524DN-T1-GE4
Vishay Siliconix
Vishay Siliconix
0.4 LOW RESISTANCE AND CAPACITAN
$1.69
Available to order
Reference Price (USD)
1+
$1.69000
500+
$1.6731
1000+
$1.6562
1500+
$1.6393
2000+
$1.6224
2500+
$1.6055
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG2524DN-T1-GE4 by Vishay Siliconix represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The DG2524DN-T1-GE4 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 1:2
- Number of Circuits: 4
- On-State Resistance (Max): 550mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): 1.8V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 60µs, 1µs
- -3db Bandwidth: 310MHz
- Charge Injection: -19pC
- Channel Capacitance (CS(off), CD(off)): 14.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -89dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount

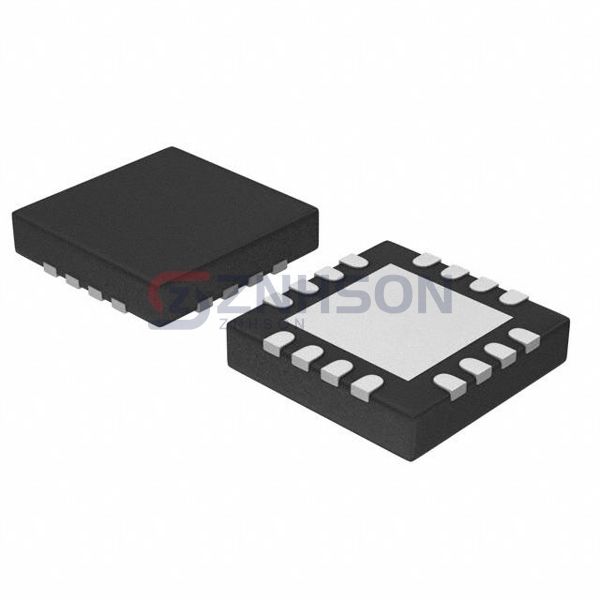

- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
