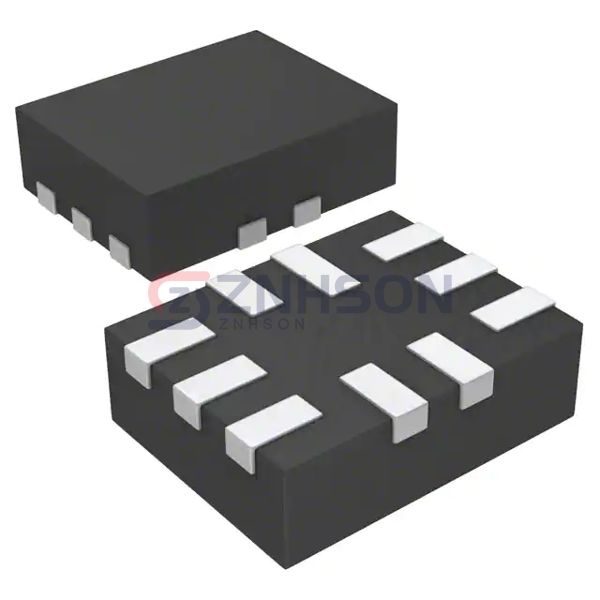

DG2735ADN-T1-GE4
Vishay Siliconix
Vishay Siliconix
IC SWITCH DPDT .6 OHM 10MINIQFN
$1.11
Available to order
Reference Price (USD)
3,000+
$0.38780
6,000+
$0.36841
15,000+
$0.35456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Vishay Siliconix's DG2735ADN-T1-GE4, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The DG2735ADN-T1-GE4 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 60mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 78ns, 58ns
- -3db Bandwidth: 50MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 55pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -70dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-miniQFN (1.4x1.8)
