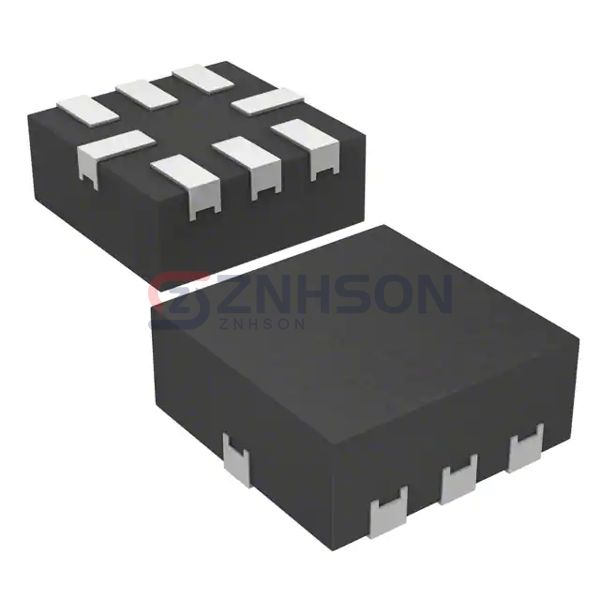

DG2738DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH 2XSPST 8 OHM 8MINIQFN
$0.93
Available to order
Reference Price (USD)
1+
$0.93000
500+
$0.9207
1000+
$0.9114
1500+
$0.9021
2000+
$0.8928
2500+
$0.8835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG2738DN-T1-E4 from Vishay Siliconix's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The DG2738DN-T1-E4 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 8Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 2.3V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 60ns, 50ns
- -3db Bandwidth: 720MHz
- Charge Injection: 10.4pC
- Channel Capacitance (CS(off), CD(off)): 4.4pF, 3.8pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -109dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-UFQFN
- Supplier Device Package: 8-miniQFN (1.4x1.4)
