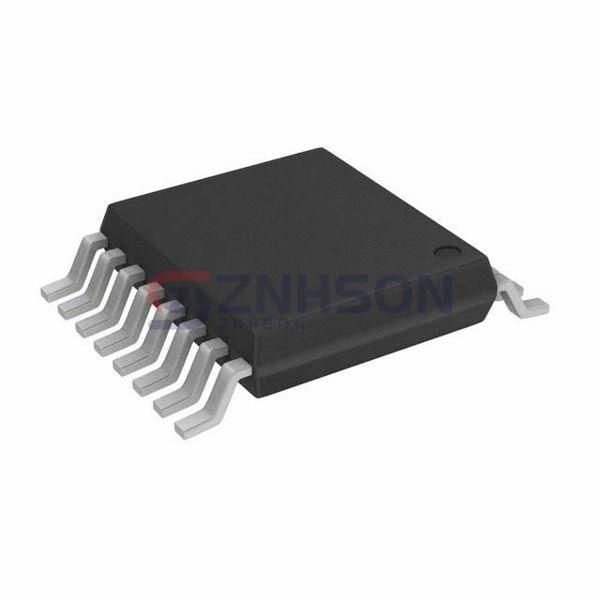

DG309BDQ-T1-E3
Vishay Siliconix
Vishay Siliconix
IC SWITCH QUAD CMOS 16TSSOP
$1.52
Available to order
Reference Price (USD)
3,000+
$1.08000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG309BDQ-T1-E3 from Vishay Siliconix's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The DG309BDQ-T1-E3 is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 85Ohm
- Channel-to-Channel Matching (ΔRon): 1.7Ohm
- Voltage - Supply, Single (V+): 4V ~ 44V
- Voltage - Supply, Dual (V±): ±4V ~ 22V
- Switch Time (Ton, Toff) (Max): 200ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -95dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
