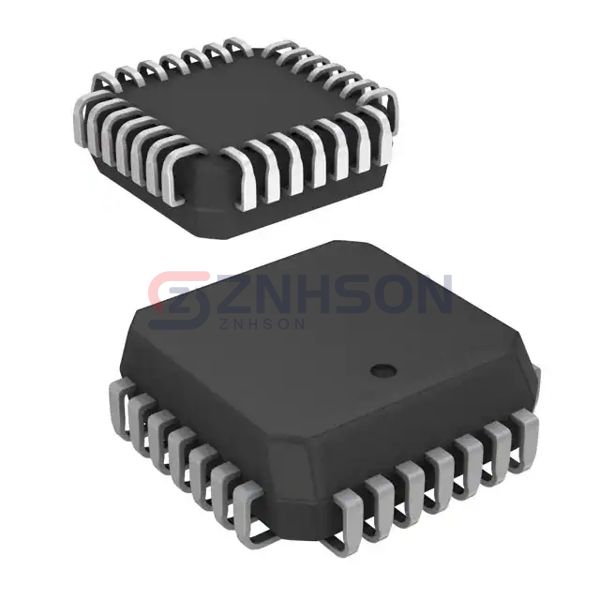

DG406BDN-T1-E3
Vishay Siliconix
Vishay Siliconix
IC ANALOG SWITCH SPDT 28PLCC
$8.12
Available to order
Reference Price (USD)
1+
$8.12000
500+
$8.0388
1000+
$7.9576
1500+
$7.8764
2000+
$7.7952
2500+
$7.714
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG406BDN-T1-E3 represents Vishay Siliconix's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 60Ohm
- Channel-to-Channel Matching (ΔRon): 3Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 107ns, 88ns
- -3db Bandwidth: -
- Charge Injection: 11pC
- Channel Capacitance (CS(off), CD(off)): 6pF, 108pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-LCC (J-Lead)
- Supplier Device Package: 28-PLCC (11.51x11.51)
