DG409LEDN-T1-GE4
Vishay Siliconix
Vishay Siliconix

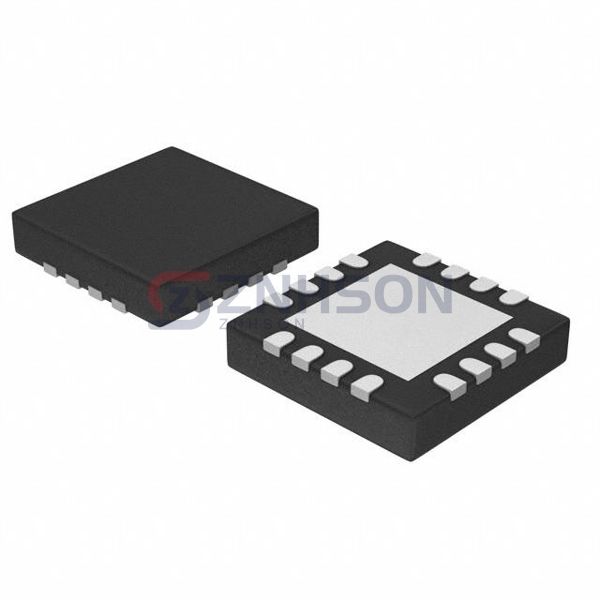

IC MUX CMOS DUAL 4CH 16-QFN
$1.04
Available to order
Reference Price (USD)
2,500+
$0.74250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Siliconix's DG409LEDN-T1-GE4 sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The DG409LEDN-T1-GE4 is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 23Ohm
- Channel-to-Channel Matching (ΔRon): 1Ohm
- Voltage - Supply, Single (V+): 3V ~ 16V
- Voltage - Supply, Dual (V±): ±3.3V ~ 8V
- Switch Time (Ton, Toff) (Max): 72ns, 47ns
- -3db Bandwidth: -
- Charge Injection: -10pC
- Channel Capacitance (CS(off), CD(off)): 5.5pF, 13.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -109dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
