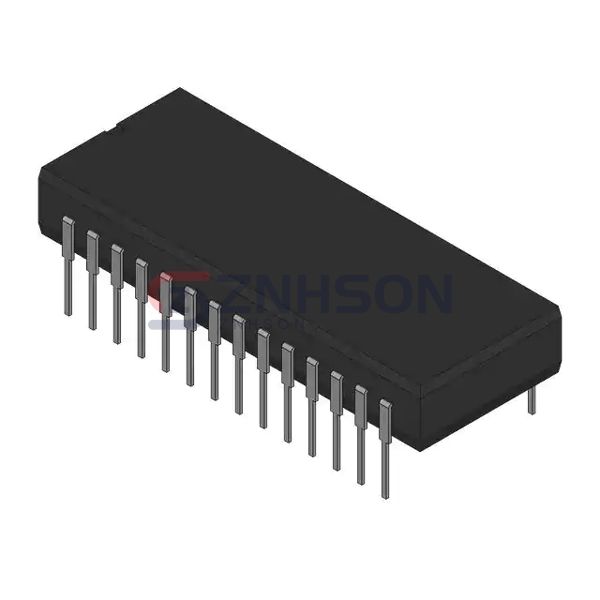

DG506ABY
Harris Corporation
Harris Corporation
CMOS ANALOG MULTIPLEXER
$3.67
Available to order
Reference Price (USD)
1+
$3.67000
500+
$3.6333
1000+
$3.5966
1500+
$3.5599
2000+
$3.5232
2500+
$3.4865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the DG506ABY by Harris Corporation delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The DG506ABY excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 450Ohm
- Channel-to-Channel Matching (ΔRon): 27Ohm
- Voltage - Supply, Single (V+): 44V
- Voltage - Supply, Dual (V±): 44V
- Switch Time (Ton, Toff) (Max): 1µs (Typ), 400ns (Typ)
- -3db Bandwidth: -
- Charge Injection: 6pC
- Channel Capacitance (CS(off), CD(off)): 6pF, 45pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -
- Operating Temperature: -25°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.600", 15.24mm)
- Supplier Device Package: 28-PDIP
