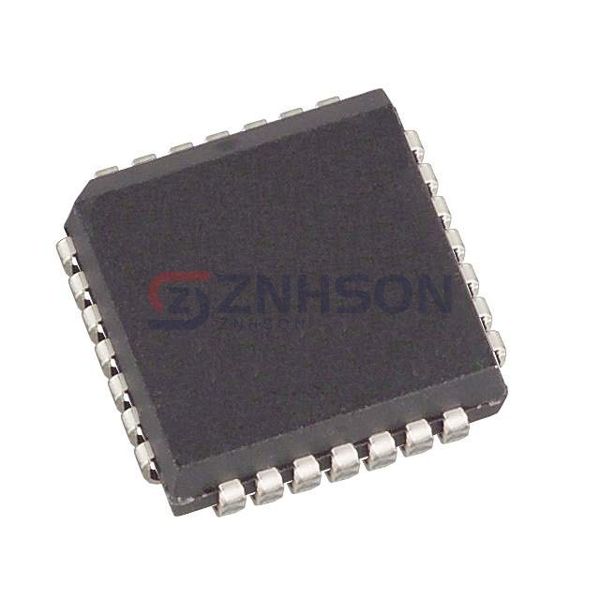

DG506ADN+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
MONOLITHIC CMOS ANALOG MULTIPLEX
$5.70
Available to order
Reference Price (USD)
1+
$5.70400
500+
$5.64696
1000+
$5.58992
1500+
$5.53288
2000+
$5.47584
2500+
$5.4188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DG506ADN+T from Analog Devices Inc./Maxim Integrated is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The DG506ADN+T is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 450Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 1µs, 400ns
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 6pF, 45pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-LCC (J-Lead)
- Supplier Device Package: 28-PLCC (11.51x11.51)
