DG509ACWE+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

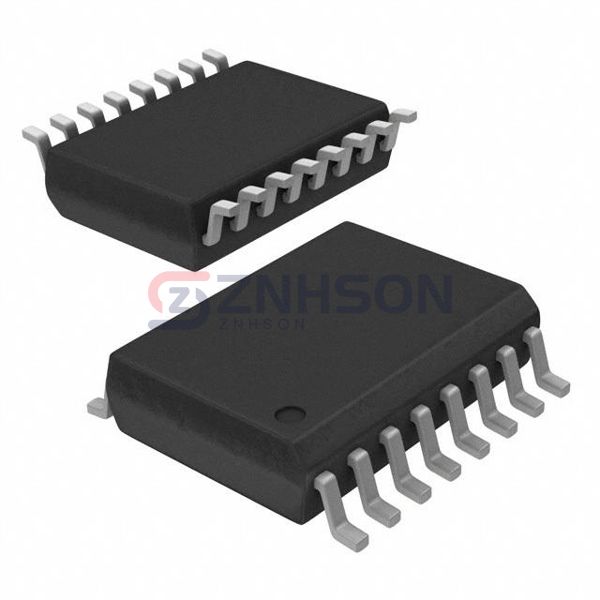

IC MULTIPLEXER DUAL 4X1 16SOIC
$11.50
Available to order
Reference Price (USD)
1+
$7.23000
10+
$6.53200
46+
$6.22783
138+
$5.42500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc./Maxim Integrated's DG509ACWE+, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The DG509ACWE+ meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 450Ohm
- Channel-to-Channel Matching (ΔRon): 27Ohm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 1.5µs, 1µs
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF, 12pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
