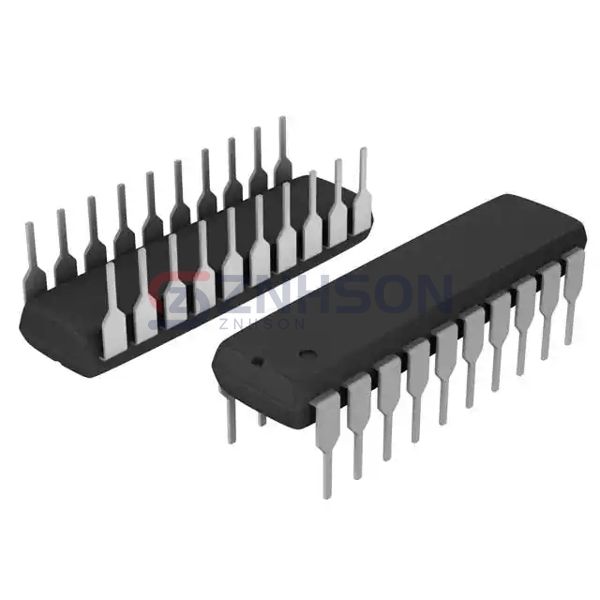

DG540DJ-E3
Vishay Siliconix
Vishay Siliconix
IC SWITCH QUAD SPST 20DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DG540DJ-E3, Vishay Siliconix's solution for high-fidelity signal switching in specialized Interface scenarios. As an Analog Switch - Special Purpose IC, it boasts sub-nanosecond transition times and bidirectional capability. Ideal for robotic arms, lab equipment, and 5G infrastructure, this component ensures zero cross-talk in multi-channel setups. A key use case involves integrating it into PCR machines for precise thermal cycler control during DNA amplification.
Specifications
- Product Status: Obsolete
- Applications: Video
- Multiplexer/Demultiplexer Circuit: 1:1
- Switch Circuit: SPST
- Number of Channels: 4
- On-State Resistance (Max): 60Ohm
- Voltage - Supply, Single (V+): 3V ~ 15V
- Voltage - Supply, Dual (V±): ±3V ~ 15V
- -3db Bandwidth: 500MHz
- Features: RGB, T-Switch Configuration
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 20-DIP (0.300", 7.62mm)
- Supplier Device Package: 20-PDIP
