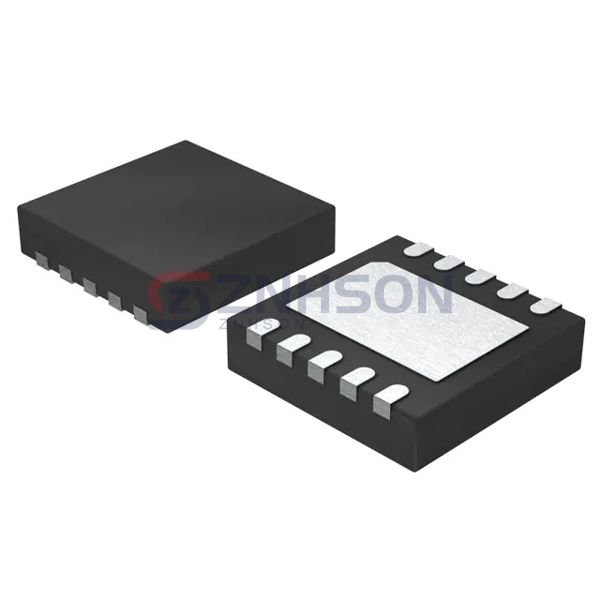

DGD0504FN-7
Diodes Incorporated
Diodes Incorporated
IC GATE DRV HALF-BRDG DFN3030-10
$0.57
Available to order
Reference Price (USD)
3,000+
$0.60800
6,000+
$0.58140
15,000+
$0.56240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DGD0504FN-7 from Diodes Incorporated is a high-performance PMIC - Gate Driver IC designed for precision control in power management applications. This integrated circuit excels in driving MOSFETs and IGBTs with exceptional speed and reliability, making it ideal for high-frequency switching systems. Key features include robust noise immunity, low propagation delay, and adaptive dead-time control to optimize efficiency. These gate drivers are widely used in industrial motor controls, solar inverters, and electric vehicle powertrains. For instance, the DGD0504FN-7 ensures seamless operation in servo drives requiring nanosecond-level response times. Its compact design and thermal protection mechanisms further enhance system longevity in demanding environments like factory automation and renewable energy systems.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 10V ~ 20V
- Logic Voltage - VIL, VIH: 0.8V, 2.5V
- Current - Peak Output (Source, Sink): 290mA, 600mA
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 100 V
- Rise / Fall Time (Typ): 70ns, 35ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: W-DFN3030-10 (Type TH)
