DGQ2788AEN-T1-GE4
Vishay Siliconix
Vishay Siliconix
IC SWITCH QD SPDT MINIQFN-16
$1.17
Available to order
Reference Price (USD)
3,000+
$0.40600
6,000+
$0.38570
15,000+
$0.37120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Siliconix's DGQ2788AEN-T1-GE4 sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The DGQ2788AEN-T1-GE4 is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: DPDT
- Multiplexer/Demultiplexer Circuit: 2:2
- Number of Circuits: 2
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 50µs, 1µs
- -3db Bandwidth: 338MHz
- Charge Injection: -245pC
- Channel Capacitance (CS(off), CD(off)): -
- Current - Leakage (IS(off)) (Max): -
- Crosstalk: -61dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN
- Supplier Device Package: 16-miniQFN (1.8x2.6)
Related Products
Analog Devices Inc.
ADG611YRZ
Renesas Electronics America Inc
ISL84514IHZ-T
Holt Integrated Circuits Inc.
HI-8202PSIF
Analog Devices Inc.
ADG1411YCPZ-REEL7
Nexperia USA Inc.
74LVC2G53DP,125
Texas Instruments
MAX4596DCKR
onsemi

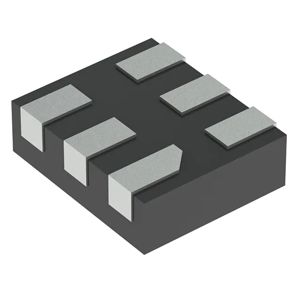

NLVHC1G66MUR2G
Analog Devices Inc./Maxim Integrated
MAX365ESE+T
Analog Devices Inc.

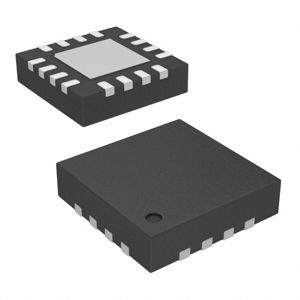

ADG4613BCPZ-REEL7
