DM74LS132SJ
Fairchild Semiconductor
Fairchild Semiconductor

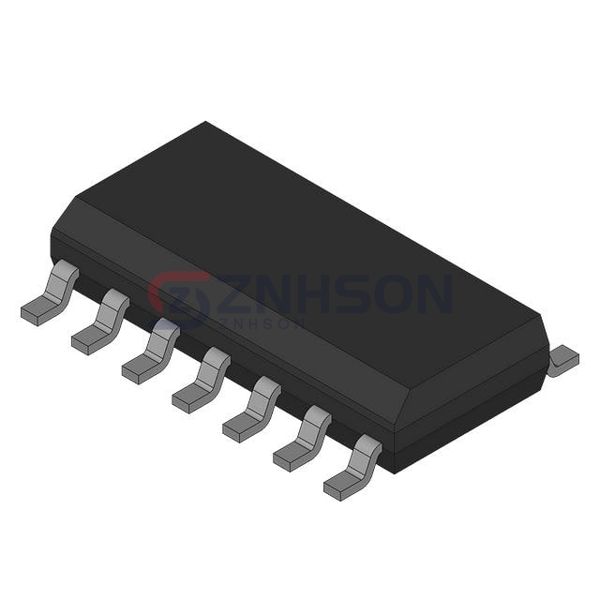

NAND GATE, LS SERIES TTL
$0.41
Available to order
Reference Price (USD)
1+
$0.41000
500+
$0.4059
1000+
$0.4018
1500+
$0.3977
2000+
$0.3936
2500+
$0.3895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DM74LS132SJ by Fairchild Semiconductor sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The DM74LS132SJ's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): 14 mA
- Current - Output High, Low: 400µA, 8mA
- Logic Level - Low: 0.5V ~ 1V
- Logic Level - High: 1.4V ~ 1.9V
- Max Propagation Delay @ V, Max CL: 33ns @ 5V, 50pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOP
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
