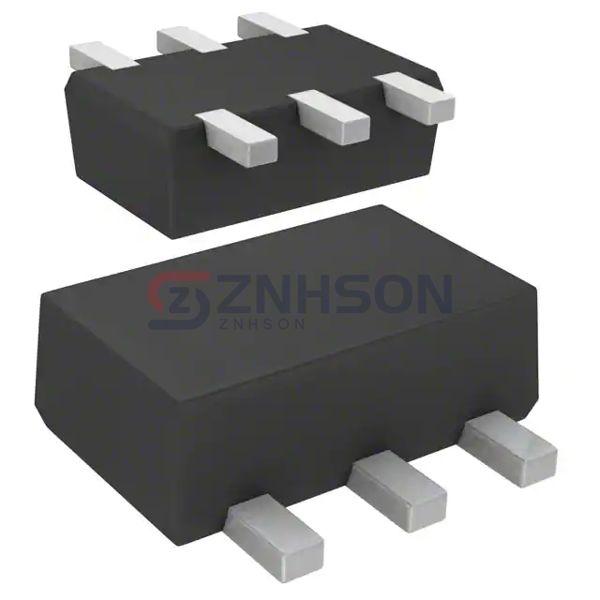

DMC566060R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS DUAL NPN SMINI6
$0.48
Available to order
Reference Price (USD)
3,000+
$0.13167
6,000+
$0.12369
15,000+
$0.11571
30,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of Panasonic Electronic Components's DMC566060R, a pre-biased BJT array tailored for modern electronics. This transistor array combines high current gain with low saturation voltage, making it ideal for switching and linear amplification. Its compact design and integrated resistors save PCB space while enhancing reliability. The DMC566060R is widely used in IoT devices, medical equipment, and renewable energy systems. Panasonic Electronic Components's advanced fabrication techniques guarantee consistent performance, even under high-stress conditions. Whether for prototyping or mass production, the DMC566060R offers a cost-effective solution for your semiconductor needs.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Flat Leads
- Supplier Device Package: SMini6-F3-B
