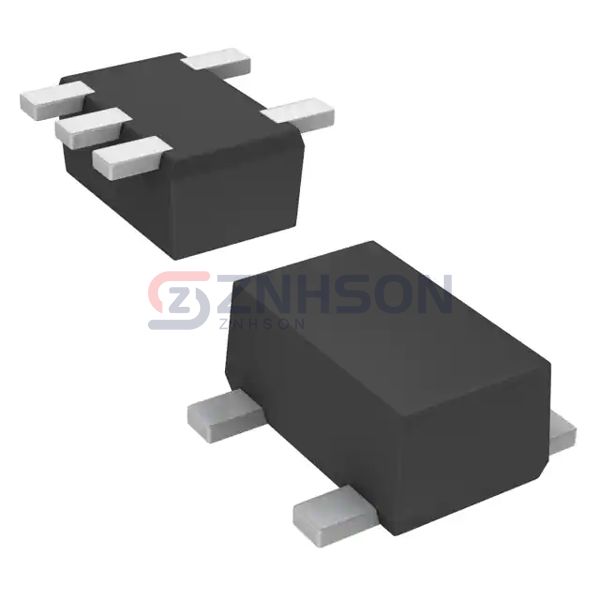

DMG563H10R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SMINI5
$0.00
Available to order
Reference Price (USD)
3,000+
$0.13167
6,000+
$0.12369
15,000+
$0.11571
30,000+
$0.10640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the DMG563H10R by Panasonic Electronic Components, a pre-biased BJT array engineered for efficiency and durability. This discrete semiconductor product features matched transistors with built-in bias resistors, simplifying circuit design and reducing component count. Perfect for space-constrained applications, the DMG563H10R excels in automotive systems, power management modules, and communication devices. Panasonic Electronic Components's commitment to quality ensures that each transistor array meets stringent performance standards, providing stable operation across a wide temperature range. Choose DMG563H10R for superior signal processing and energy-efficient performance.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms, 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms, 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V / 30 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: 6-SMD (5 Leads), Flat Lead
- Supplier Device Package: SMini5-F3-B
