DML-10-A-H-T-A-SBL
Adam Tech
Adam Tech
CONN HEADER R/A 10POS 3MM
$0.82
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.68900
100+
$0.59400
500+
$0.48600
1,000+
$0.43200
5,000+
$0.37800
10,000+
$0.35910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

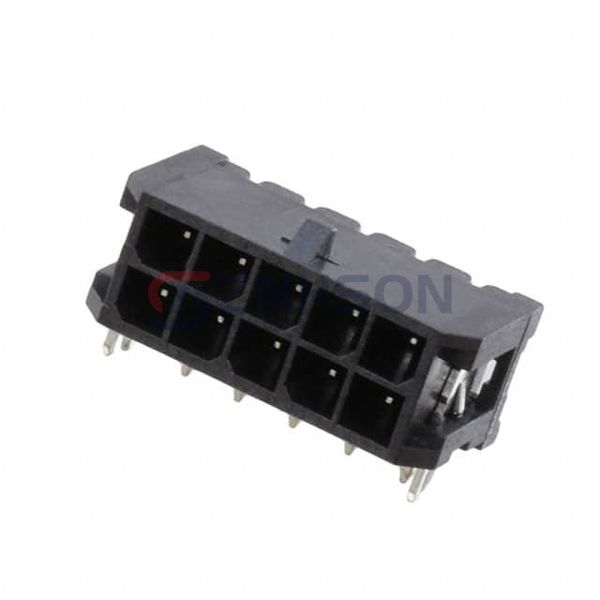

The DML-10-A-H-T-A-SBL by Adam Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the DML-10-A-H-T-A-SBL supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Adam Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
