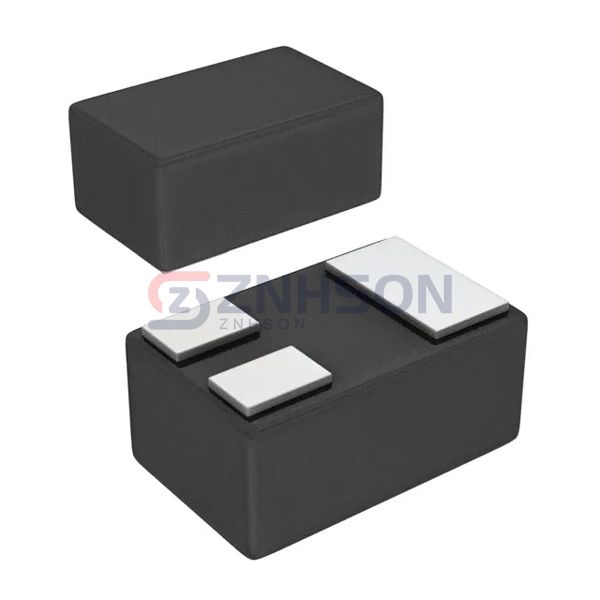

DMN2300UFB-7B
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 1.32A 3DFN
$0.10
Available to order
Reference Price (USD)
10,000+
$0.10249
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the DMN2300UFB-7B single MOSFET from Diodes Incorporated. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Diodes Incorporated's DMN2300UFB-7B for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1.32A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 175mOhm @ 300mA, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.89 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 67.62 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 468mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X1-DFN1006-3
- Package / Case: 3-UFDFN
Related Products
Rohm Semiconductor
R6015KNXC7G
onsemi
2SK1432
onsemi
NTMFS4923NET3G
Rectron USA
RM1002
Infineon Technologies
IRFS4115TRLPBF
Diodes Incorporated
DMP6350S-7
Rohm Semiconductor
RK7002BMT116
Sanyo

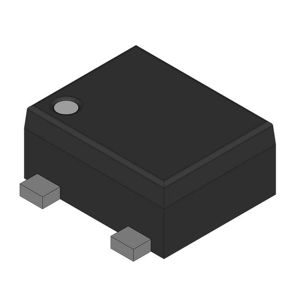

MCH3414-TL-E
Diodes Incorporated

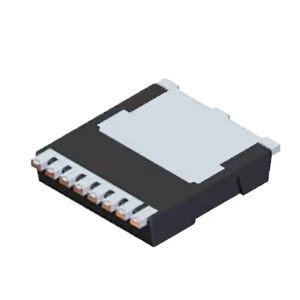

DMTH10H1M7STLW-13
