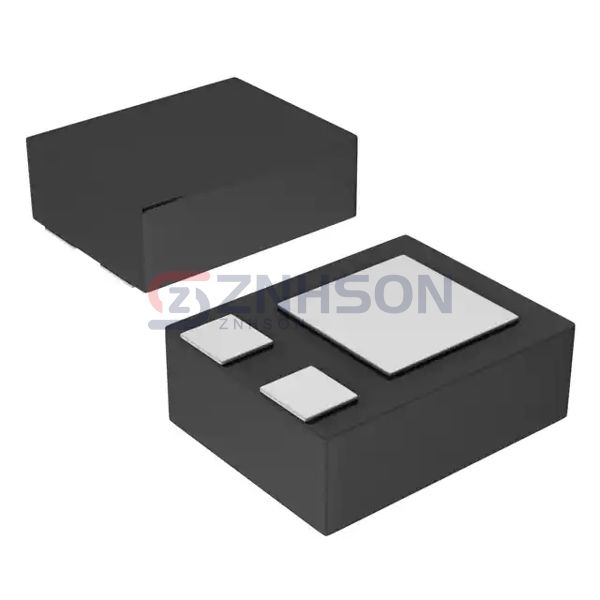

DMN2501UFB4-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 1A X2-DFN1006-3
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DMN2501UFB4-7 by Diodes Incorporated, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The DMN2501UFB4-7 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Diodes Incorporated.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 400mOhm @ 600mA, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2 nC @ 10 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 82 pF @ 16 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X2-DFN1006-3
- Package / Case: 3-XFDFN
