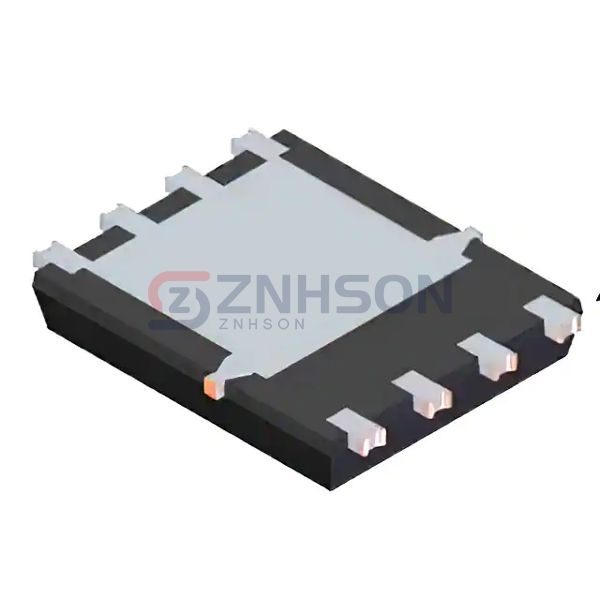

DMTH4014LPSW-13
Diodes Incorporated
Diodes Incorporated
MOSFET BVDSS: 31V~40V POWERDI506
$0.24
Available to order
Reference Price (USD)
1+
$0.24074
500+
$0.2383326
1000+
$0.2359252
1500+
$0.2335178
2000+
$0.2311104
2500+
$0.228703
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMTH4014LPSW-13 by Diodes Incorporated is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Diodes Incorporated for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 43.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 14.5mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.2 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 750 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 4W (Ta), 46.9W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: PowerDI5060-8 (Type UX)
- Package / Case: 8-PowerTDFN
Related Products
IXYS
IXFP56N30X3M
Infineon Technologies
IAUS200N08S5N023ATMA1
onsemi
NTTFS002N04CLTAG
Nexperia USA Inc.
PXP020-20QXJ
onsemi
FDD8880
UnitedSiC
UJ3C065030B3
Nexperia USA Inc.

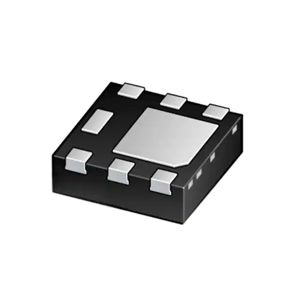

PMPB85ENEA/FX
onsemi

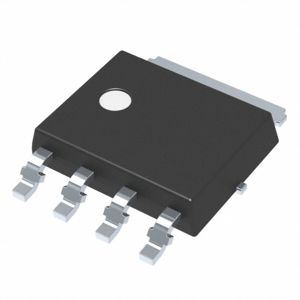

NVMYS6D2N06CLTWG
