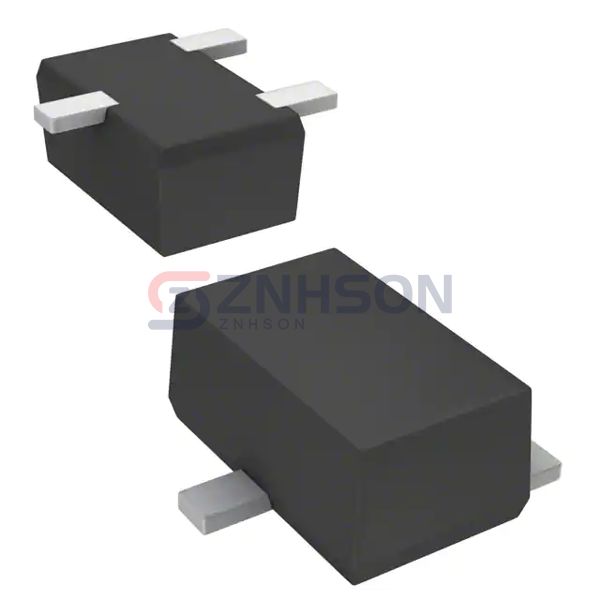

DRC5114W0L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 150MW SMINI3
$0.43
Available to order
Reference Price (USD)
3,000+
$0.07665
6,000+
$0.06899
15,000+
$0.06132
30,000+
$0.05749
75,000+
$0.05110
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DRC5114W0L Panasonic Electronic Components's answer to modern circuit design challenges. This pre-biased bipolar transistor combines 2N3904 compatibility with enhanced thermal characteristics. Key applications include: Electric vehicle charging stations Industrial IoT gateways Smart meter modules With 100% automated production testing, each unit delivers military-grade reliability for critical infrastructure projects.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 150 mW
- Mounting Type: Surface Mount
- Package / Case: SC-85
- Supplier Device Package: SMini3-F2-B
