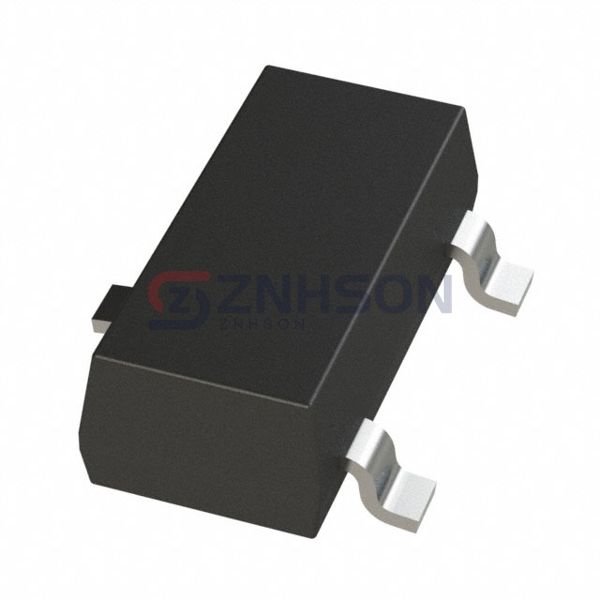

DRV5056Z4QDBZR
Texas Instruments
Texas Instruments
RATIOMETRIC UNIPOLAR LINEAR HALL
$2.30
Available to order
Reference Price (USD)
1+
$2.30000
500+
$2.277
1000+
$2.254
1500+
$2.231
2000+
$2.208
2500+
$2.185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments DRV5056Z4QDBZR compass sensor IC is the ultimate solution for precise heading and orientation detection. Designed for marine navigation, UAVs, and virtual reality systems, this sensor delivers high-resolution data with minimal latency. Its advanced calibration features ensure accuracy across a wide range of operating conditions. The DRV5056Z4QDBZR is built to withstand vibrations and shocks, making it durable for outdoor and mobile applications. Partner with Texas Instruments to integrate world-class compass technology into your next project.
Specifications
- Product Status: Active
- Technology: Hall Effect
- Axis: Single
- Output Type: Analog Voltage
- Sensing Range: 158mT
- Voltage - Supply: 3V ~ 3.6V, 4.5V ~ 5.5V
- Current - Supply (Max): 10mA
- Current - Output (Max): 1mA
- Resolution: -
- Bandwidth: 20kHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Features: Temperature Compensated
- Supplier Device Package: SOT-23-3
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
